Nowadays, in our daily lives, there are many waterproof items, such as watches, mobile phones, sockets, etc. Why should we be waterproof? Firstly, we need to consider that many things are easily damaged once they enter the water. Therefore, in order to prolong the service life of the items, we must choose waterproof items to extend their service life. Below, we will introduce the M8 series to everyoneWaterproof connectorDetailed properties of and where applicable.

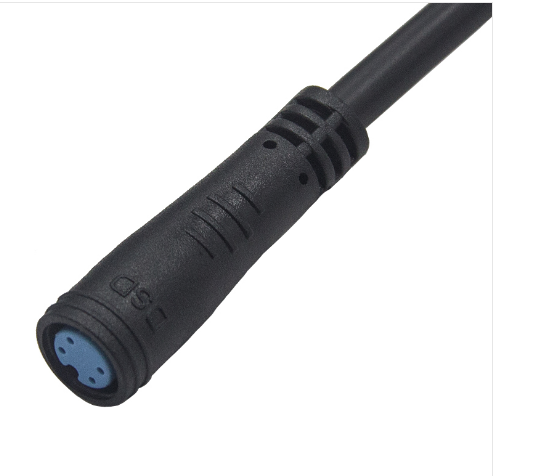

M8 fast PVCApplicable to electric bicycle plug wire, waterproof male and female plug wire, automobile harness wire, Kick scooter plug wire, power pair plug wire, etc
Male
Femzle
Contacts Number: 2-7 cores
Voltage Rating: 250V
Current Rating: 3A 3A 2A 2A
Wire Gauge:<=0.3MM ² <=0.3MM ² 0.2MM ² 0.2MM ² 0.2MM ²
Cable OD: 3MM-5.0MM
Operating Temperature: -20C ° -80C °
Waterproof Level: IP65
Pin Layout:
